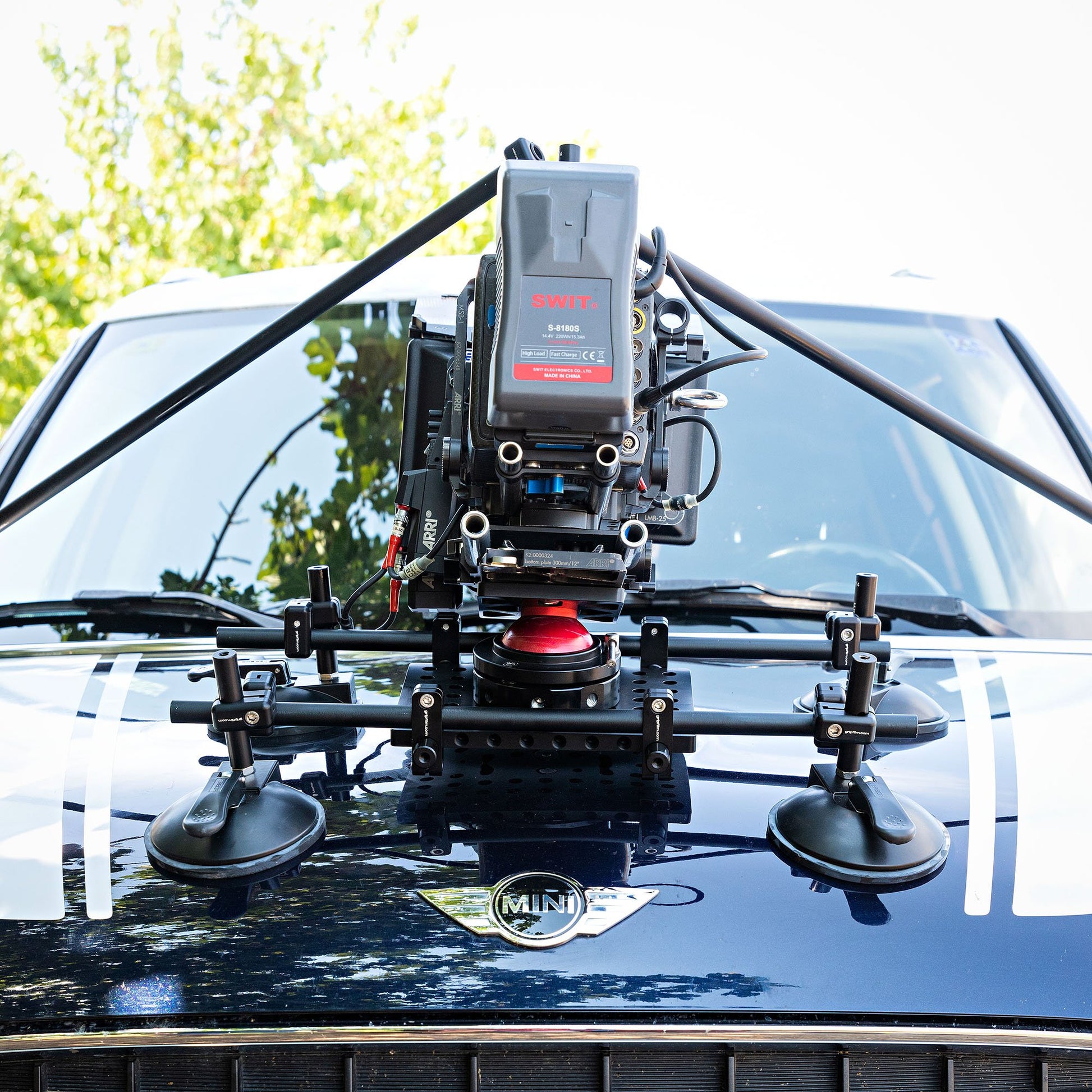

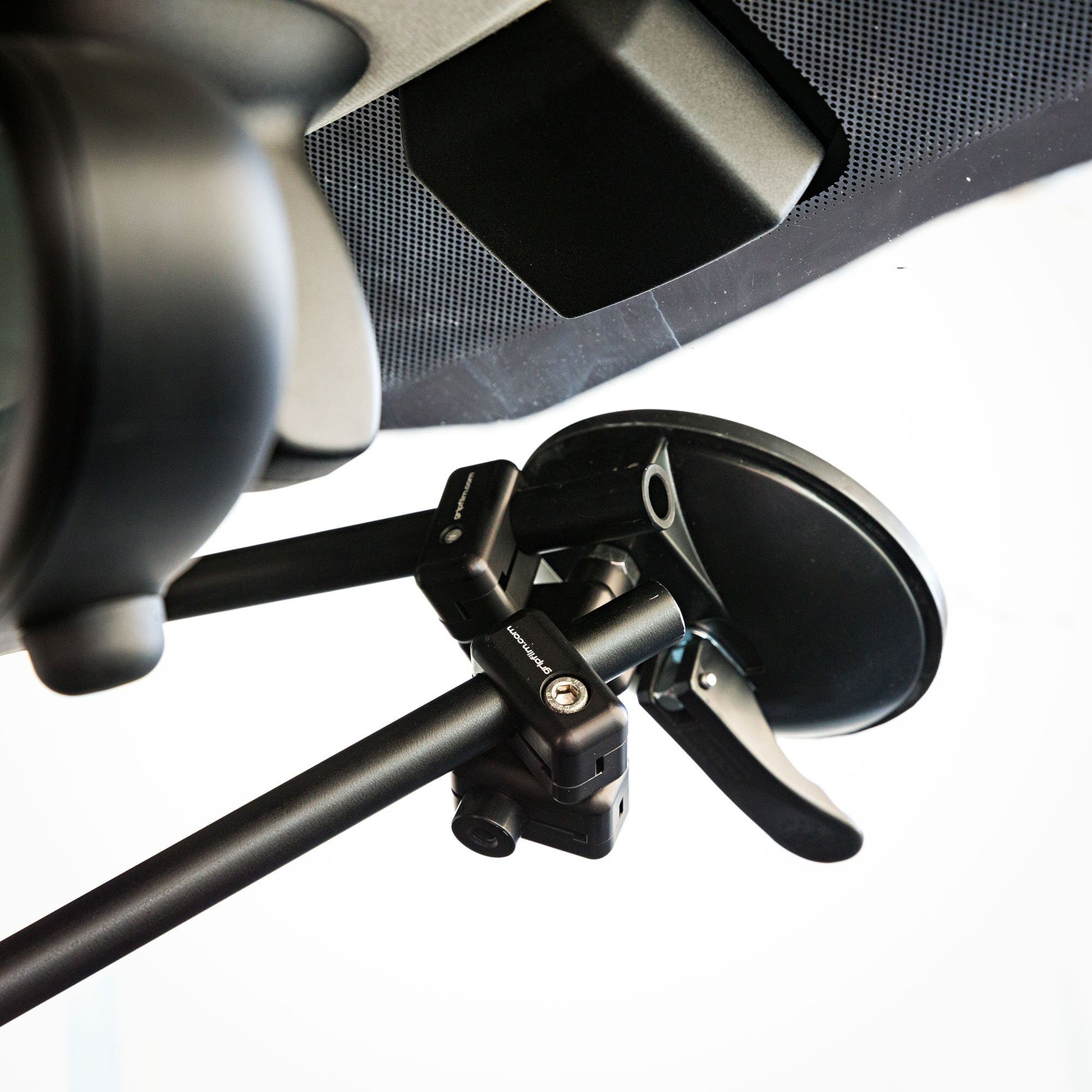

Suction Cup Set

Features:
☑ 85mm outside diameter (OD)
☑ 90mm outside diameter (OD)
☑ 120mm outside diameter (OD)
☑ 150mm outside diameter (OD)
☑ Stainless steel
☑ Black anodized
☑ High-strength aluminium alloy

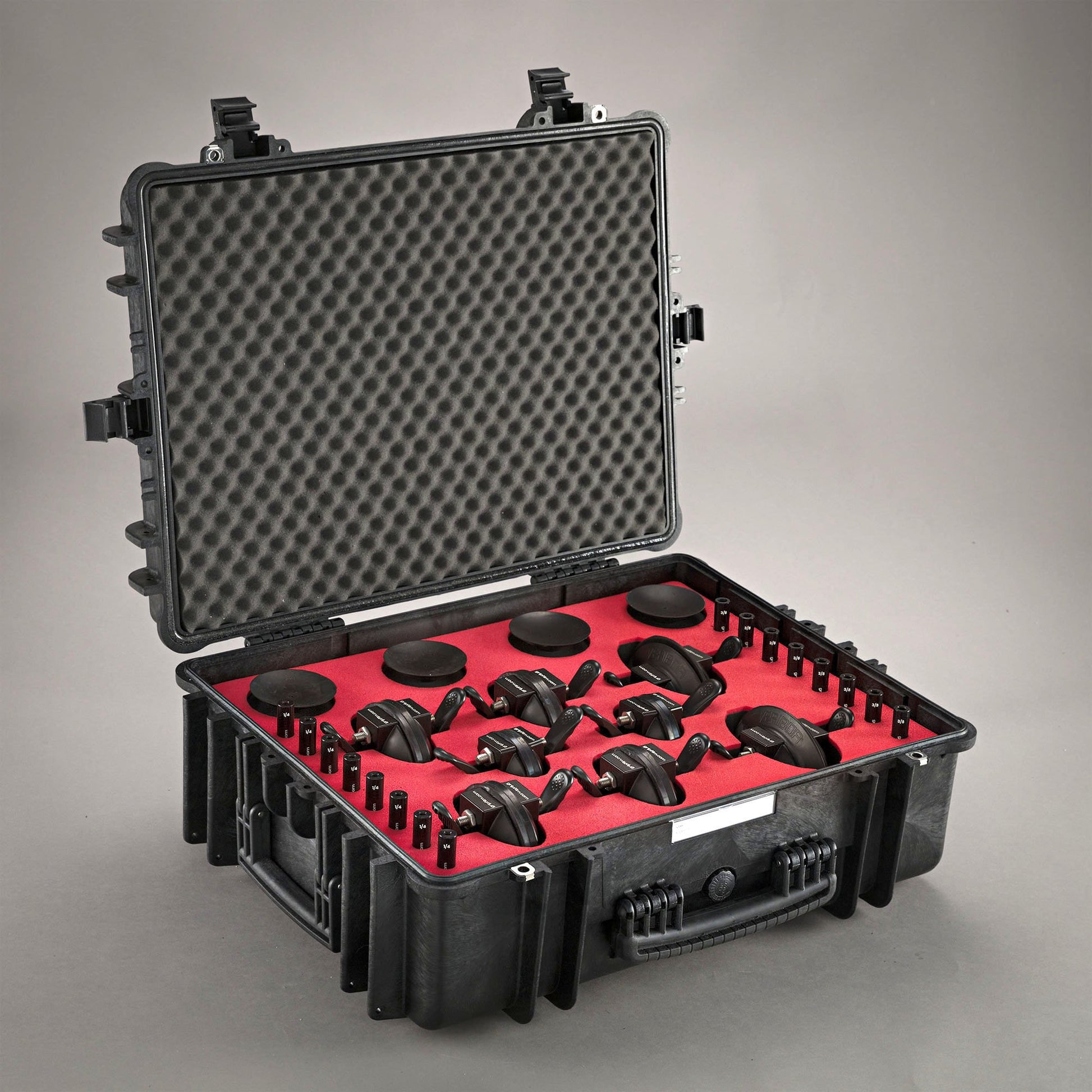

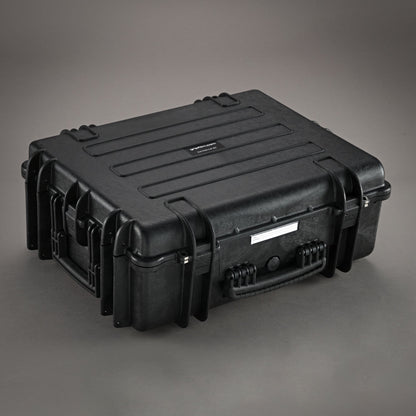

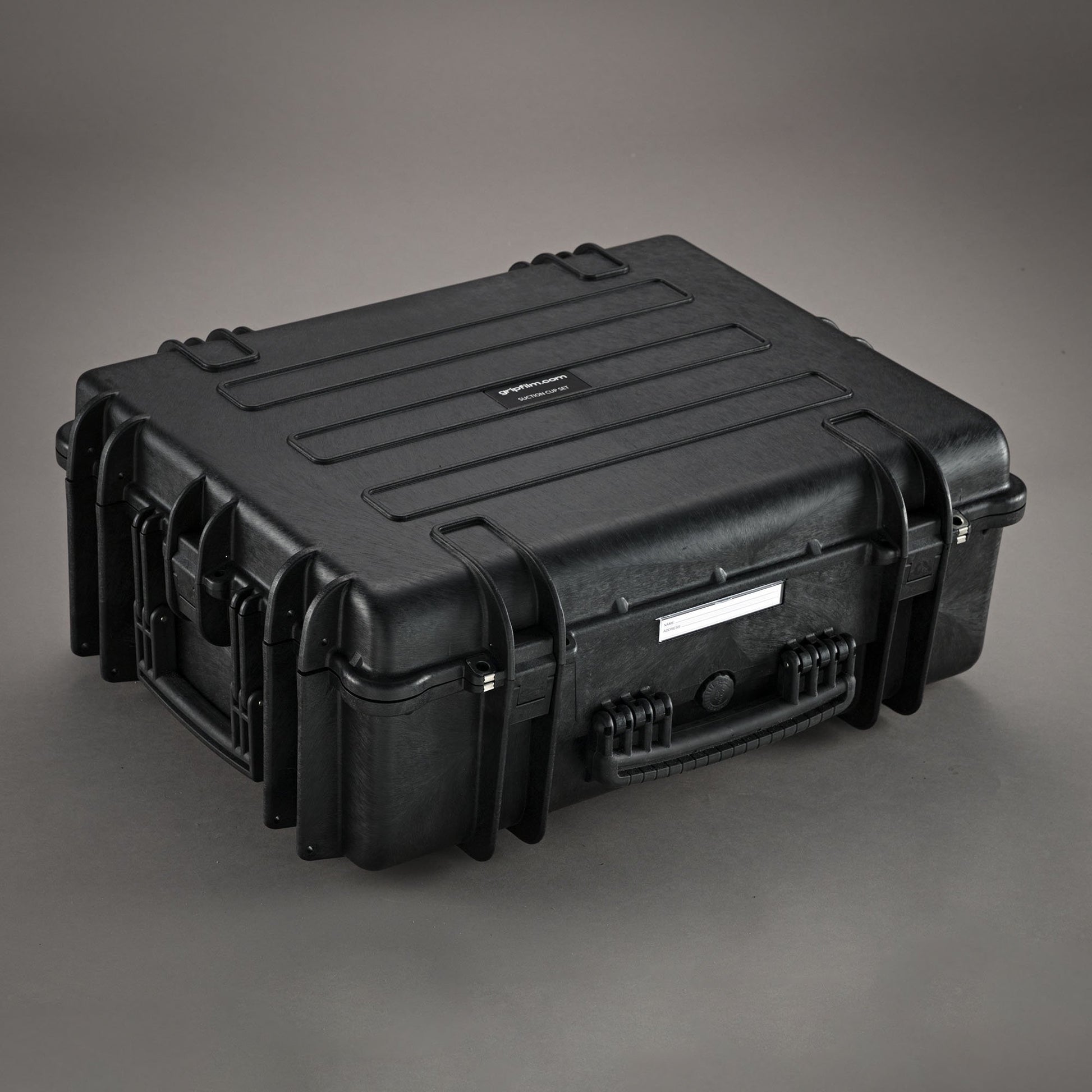

☑ Black Explorer case 5822

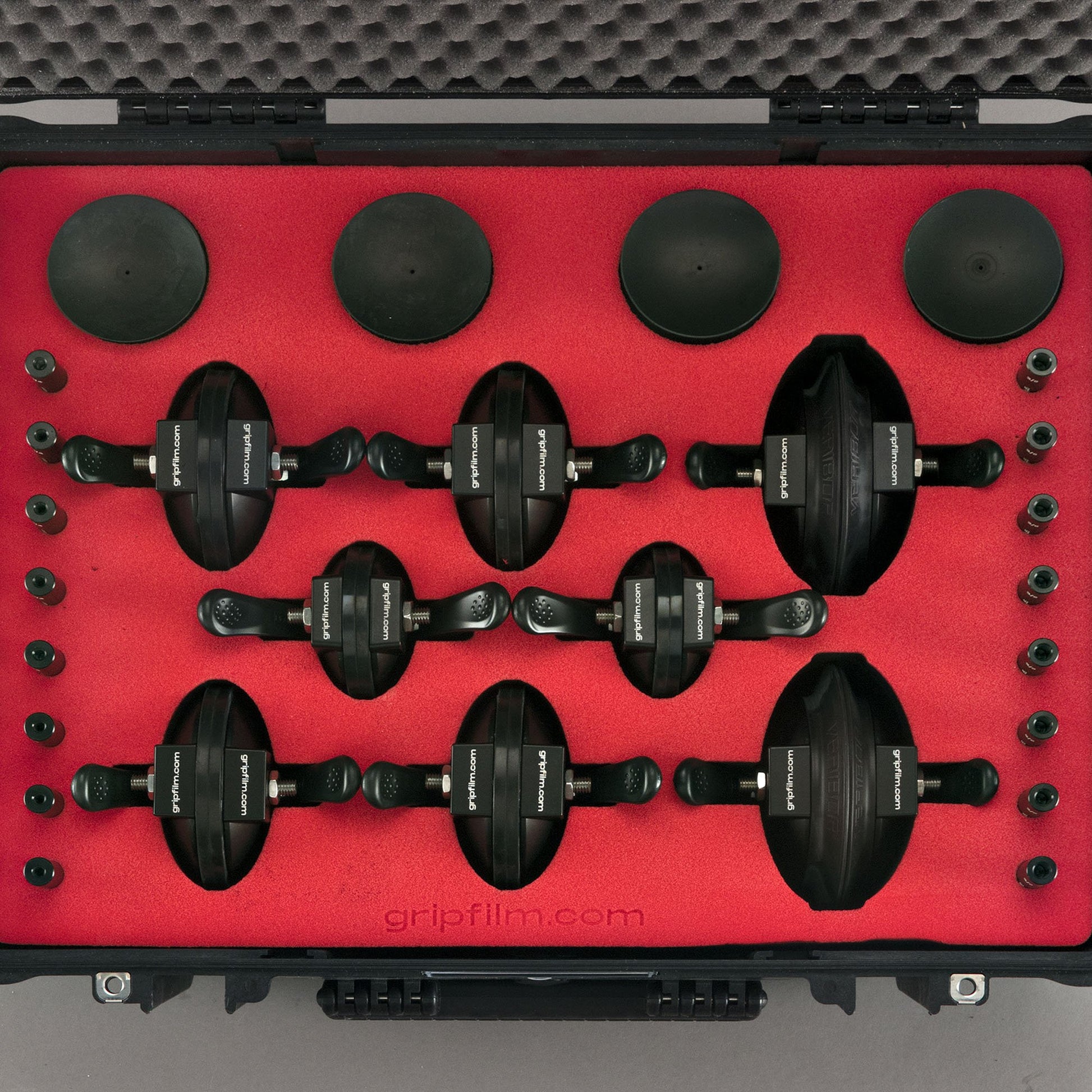

☑ Custom laser cut foam
☑ Copolymer polypropylene case
☑ Waterproof case

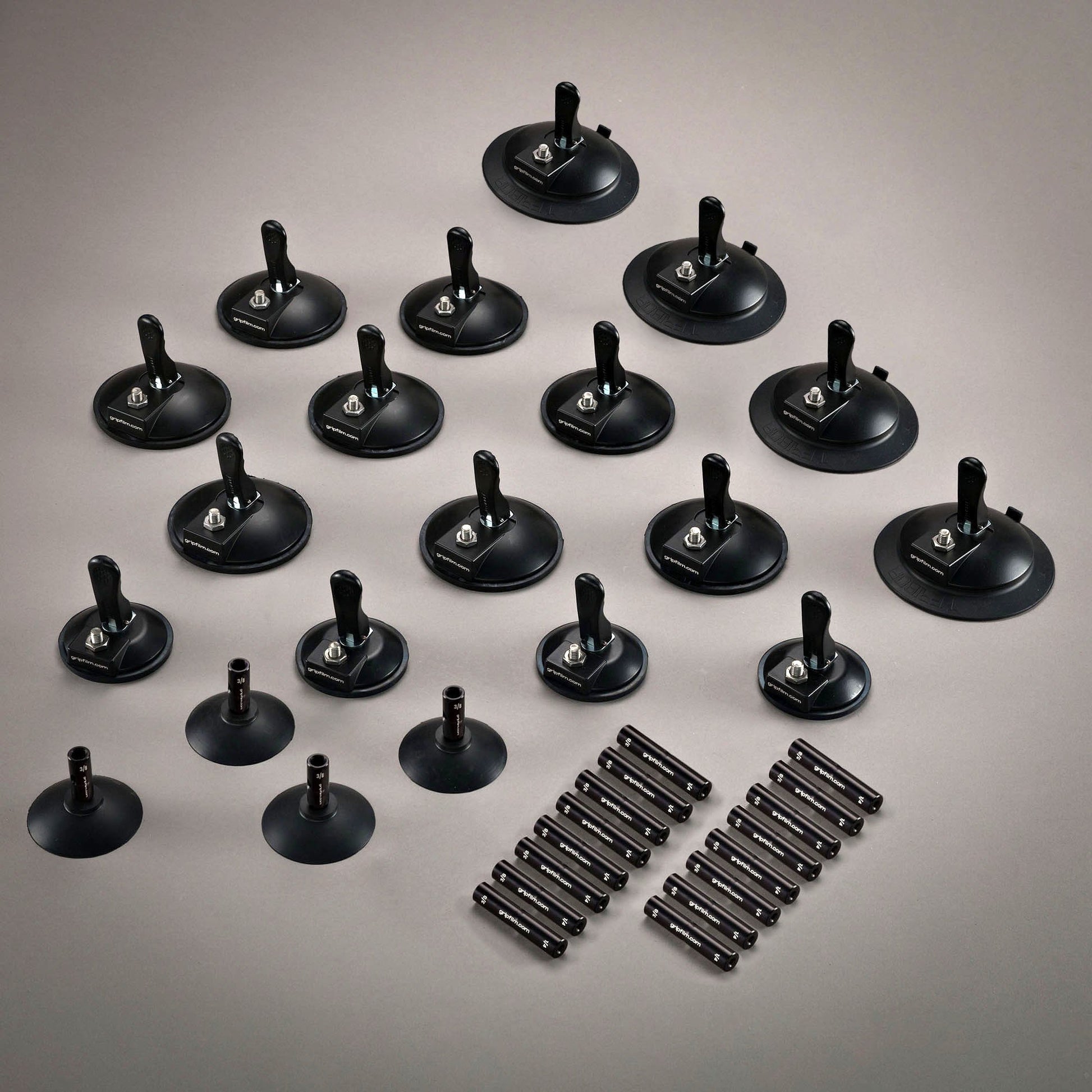

Set includes:
☑ 4 pieces 85mm rubber suction pads with 40mm starter pin 16mm (5/8")
☑ 4 pieces 90mm suction cups
☑ 8 pieces 120mm suction cups
☑ 4 pieces 150mm suction cups

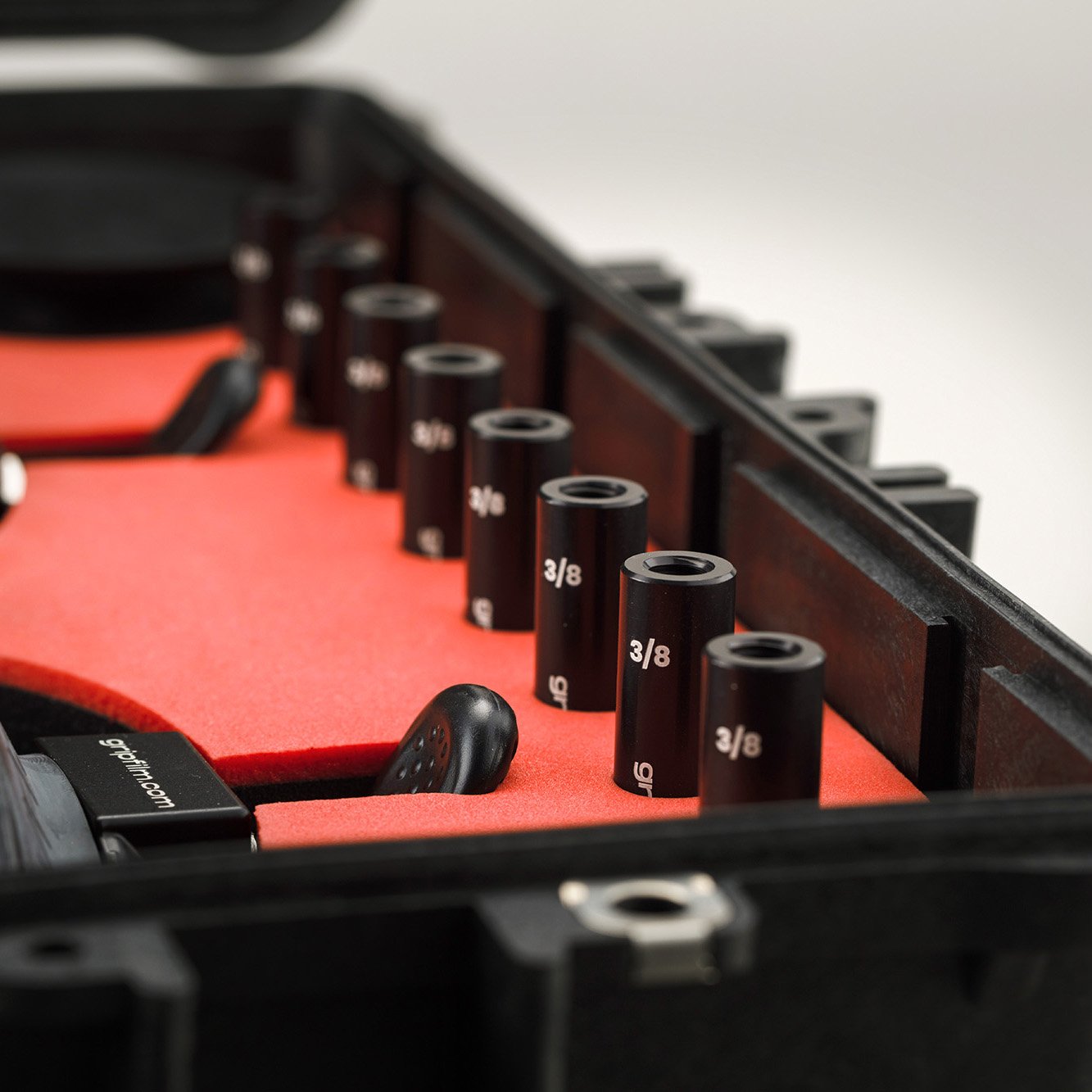

☑ 16 pieces 80mm length - starter pins 1/4 - 3/8 female threads
☑ Black Explorer case 5822

Note: The suction cups should never be stored activated; they should always be stored in their resting position.

Maximum load capacity:

GFSC-150 - 16.6kg
GFSC-120 - 13.3kg
GFSC-90 - 7.3kg
Includes a 3:1 safety factor and requires the following: attachment on clean, smooth, nonporous flat surfaces; a minimum vacuum level of 17½" Hg [-59 kPa]; and a friction coefficient of 1. This rating is based on tests of new hand cups attached to the upper, horizontal surface of static objects in ideal conditions. Many factors can reduce the capacity, including: lifting a load when the cup is attached to a vertical or inclined surface; or lifting a load that applies leverage to the cup.

For further information about what it includes, click on the PDF.
