Everything you need to start building with Cine Truss. Fourteen truss sections across six lengths, plus the rotary adapter, scaffold clamps and the Mitchell and EURO adapters that tie it into the rest of your gear. If you are bringing the system in for the first time, this is the sensible way to do it - buying the same pieces separately costs more.
Cine Truss is a precision-machined mini truss system built for camera departments. Every section is 4" x 4" 6061-T6 aluminum, black anodized, and bolts together with M10 hardware instead of the heavy steel connector blocks a normal truss needs. Tight tolerances mean the joints come together with no play, the same way every time, so a rig you built yesterday goes back together today exactly as it was.
Because it breaks down to straight sections it packs into standard protective cases, which is what makes it workable for travel and run-and-gun jobs where a conventional truss simply is not going to fly.

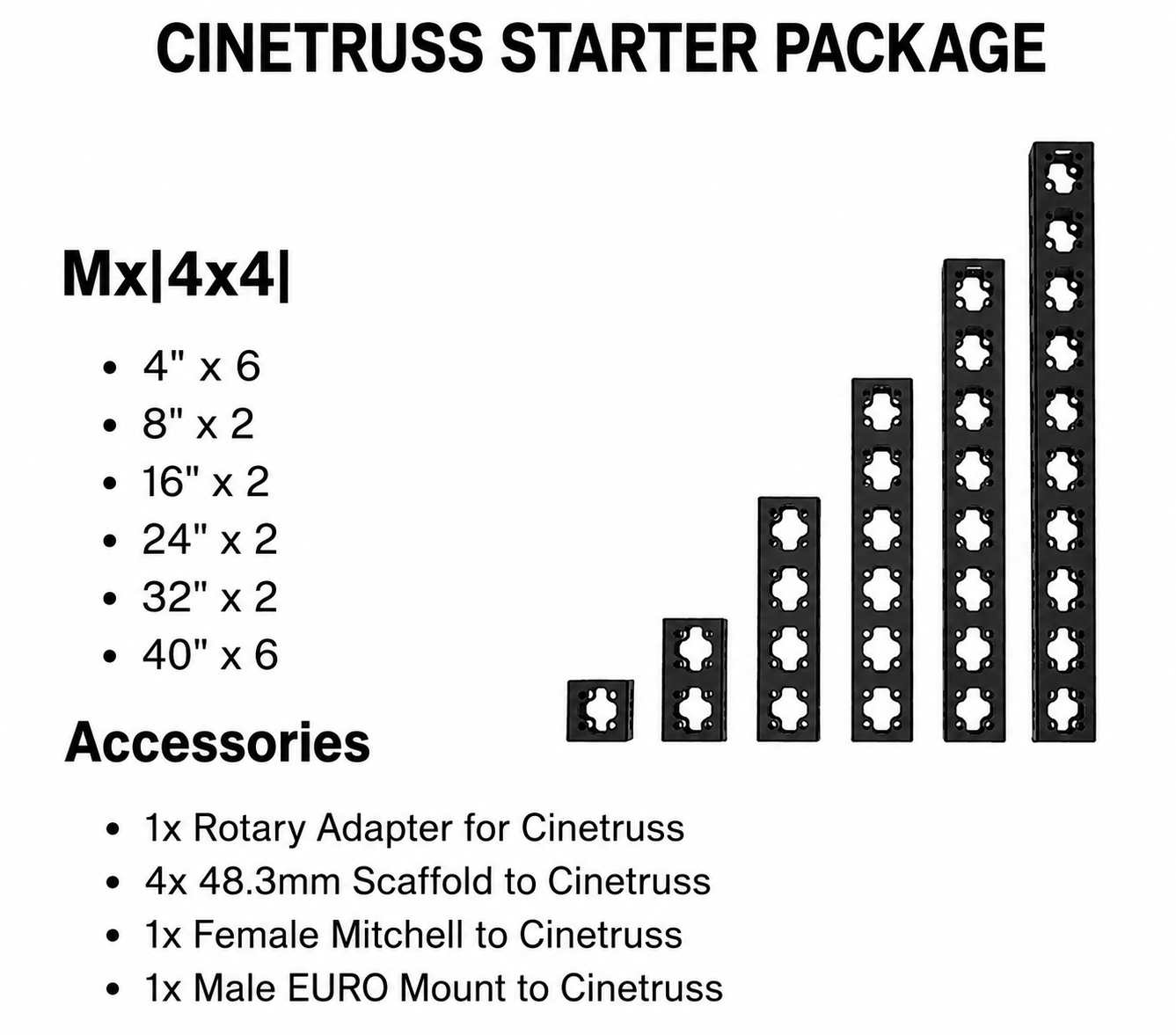

What's Included

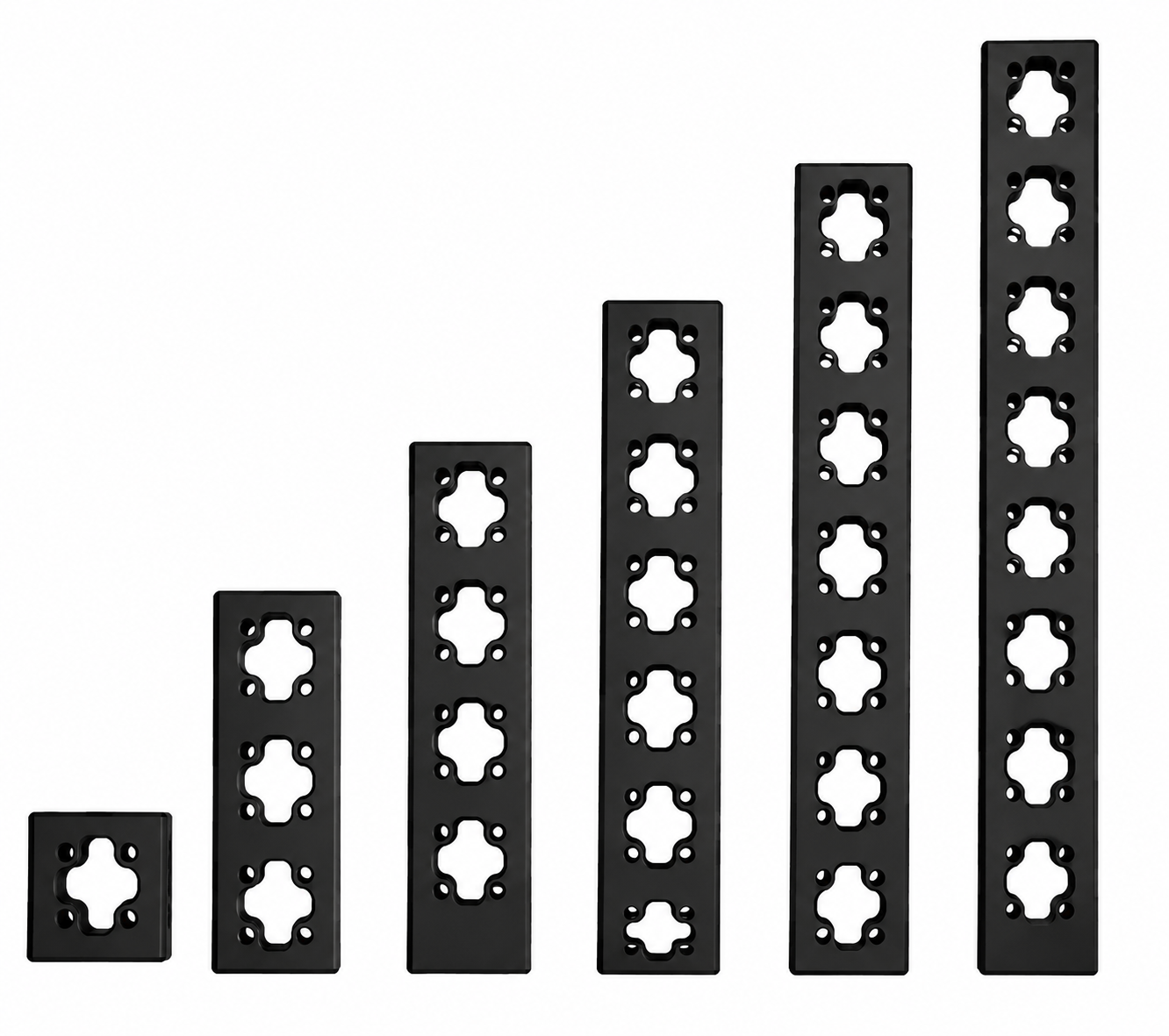

- M|4x4| Truss: 4″ x 6
- M|4x4| Truss: 8″ x 2
- M|4x4| Truss: 16″ x 2
- M|4x4| Truss: 24″ x 2
- M|4x4| Truss: 32″ x 2
- M|4x4| Truss: 40″ x 2
- 1x Rotary Adapter for Cinetruss
- 4x 48.3mm Scaffold to Cinetruss
- 1x Female Mitchell to Cinetruss
- 1x Male EURO Mount to Cinetruss
Specifications
-
Shipping Weight: 72 kg
-
Standard Materials: 6061-T6 Aluminum
-
Standard Finish: Black Anodized
-
Part Number: PA-01
