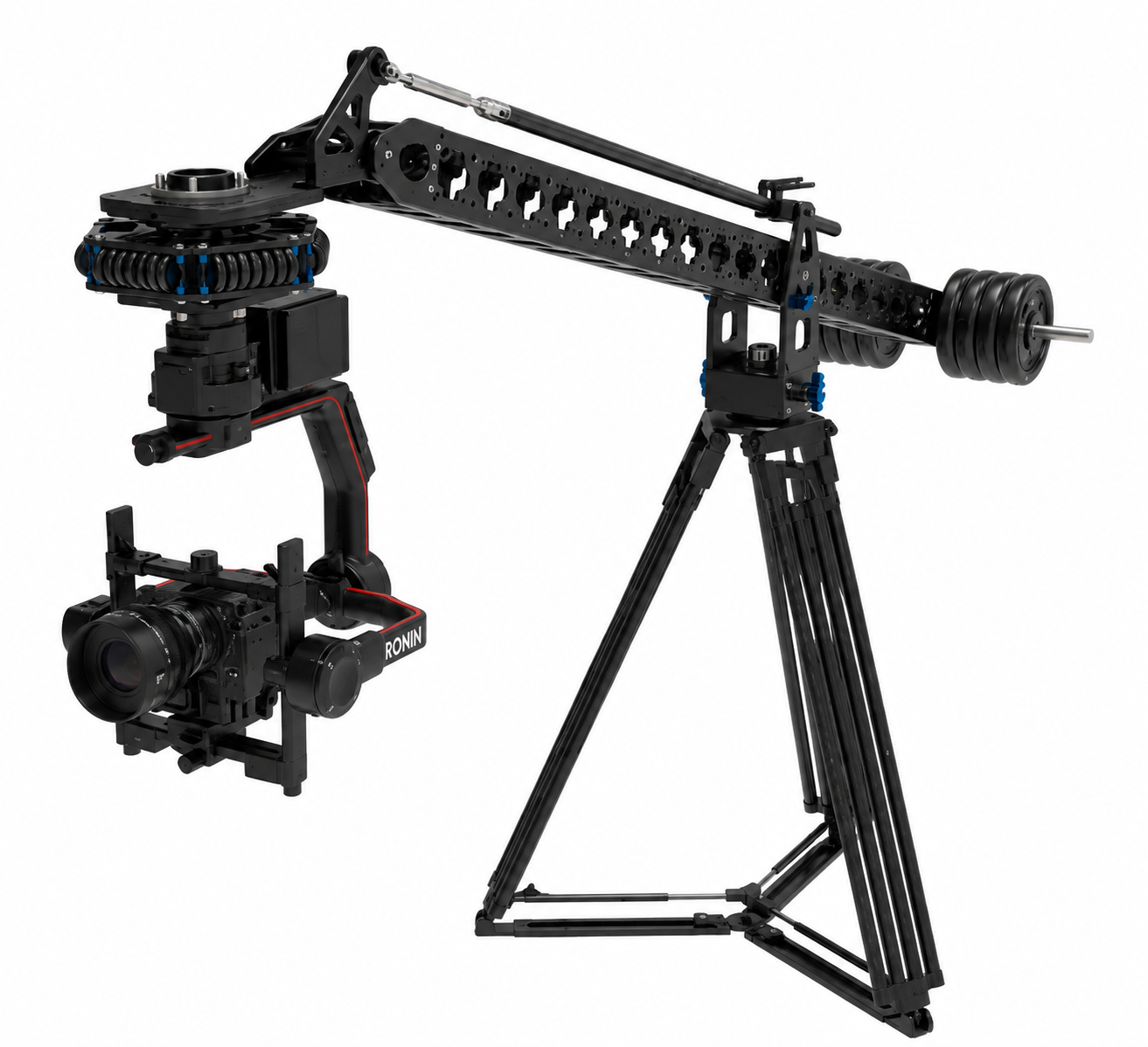

The full Cine Truss system. Sixteen truss sections, the complete adapter set including both 90 degree Mitchell mounts, plus the turntable kit and the crane set. This is the package for a rental house or a department that wants the whole range on the shelf rather than ordering pieces job to job.
Cine Truss is a precision-machined mini truss system built for camera departments. Every section is 4" x 4" 6061-T6 aluminum, black anodized, and bolts together with M10 hardware instead of the heavy steel connector blocks a normal truss needs. Tight tolerances mean the joints come together with no play, the same way every time, so a rig you built yesterday goes back together today exactly as it was.
Because it breaks down to straight sections it packs into standard protective cases, which is what makes it workable for travel and run-and-gun jobs where a conventional truss simply is not going to fly.
What's Included
- M|4x4| Truss: 4″ x (quantity not listed on page)
- M|4x4| Truss: 8″ x 2
- M|4x4| Truss: 16″ x 2
- M|4x4| Truss: 24″ x 2
- M|4x4| Truss: 32″ x 2
- M|4x4| Truss: 40″ x 6
- 1x Male Mitchell to Cinetruss
- 1x Female Mitchell to Cinetruss
- 1x Male EURO Mount to Cinetruss
- 1x 90 Degrees Female Mitchell to Cinetruss
- 1x 90 Degrees Male Mitchell to Cinetruss
- 2x 48.3mm Scaffold to Cinetruss
- 4x 48.3mm Starter to Cinetruss
- 1x Turntable Kit Set for Cinetruss
- 1x Crane Set for Cinetruss
Specifications
-
Shipping Weight: 124 kg
-
Standard Materials: 6061-T6 Aluminum
-
Standard Finish: Black Anodized
-
Part Number: PA-02
