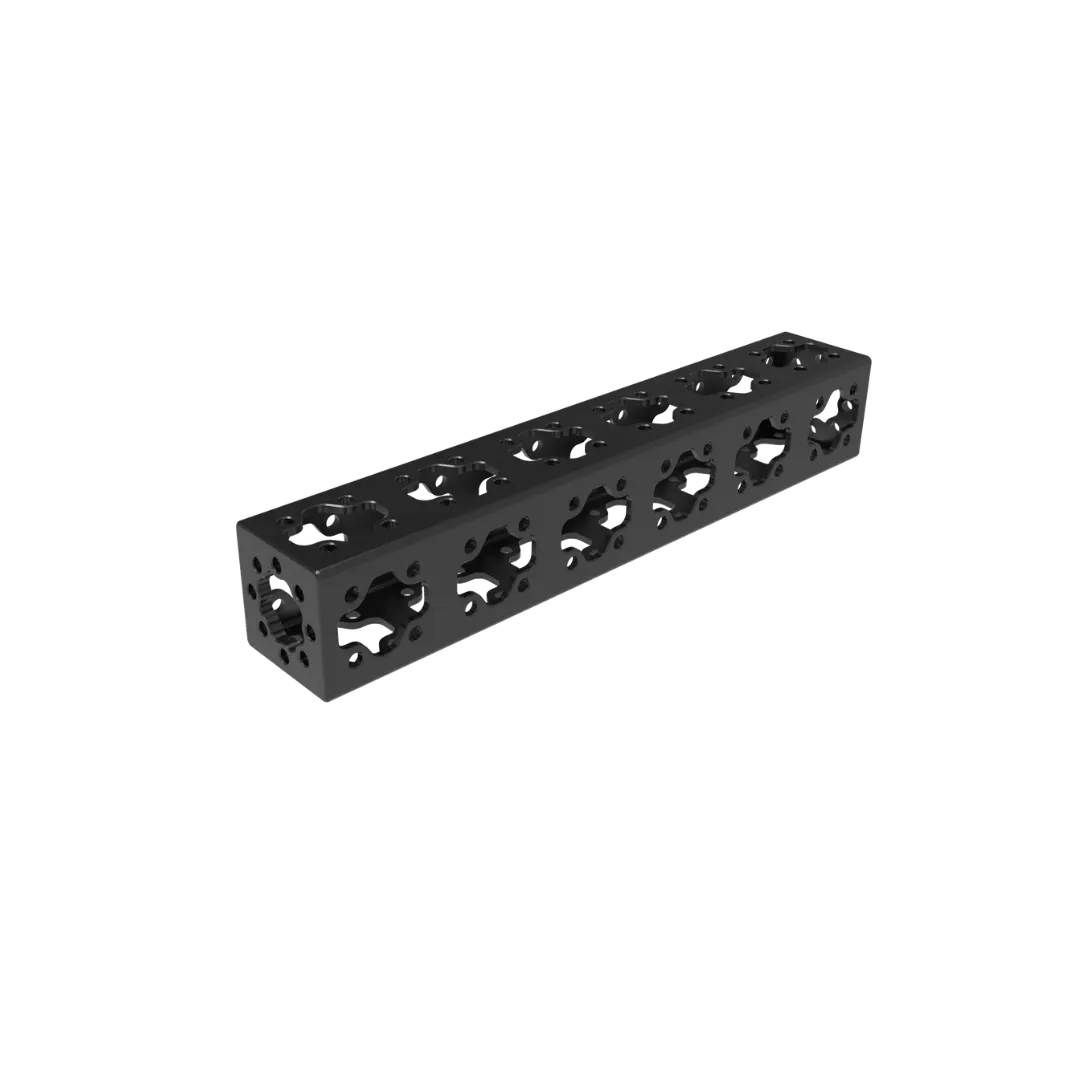

Cine Truss 24" Section (4" x 4") - CTR-04-04-024

24" Cine Truss section, 4" x 4" profile. Two feet of truss. A common building block for towers, cross members and camera platforms.

Cine Truss is a precision-machined mini truss system built for camera departments. Every section is 4" x 4" 6061-T6 aluminum, black anodized, and bolts together with M10 hardware instead of the heavy steel connector blocks a normal truss needs. Tight tolerances mean the joints come together with no play, the same way every time, so a rig you built yesterday goes back together today exactly as it was.

Because it breaks down to straight sections it packs into standard protective cases, which is what makes it workable for travel and run-and-gun jobs where a conventional truss simply is not going to fly.

Specifications

• Size: 4″ x 4″ x 24″ (101.6mm x 101.6mm x 609.6mm)
• Weight: 3.0 kg
• Standard Materials: 6061 – T6 Aluminum
• Standard Finish: Black Anodized
• Recommended Hardware: M10 x 1.5 Thread, 40mm Long, Class 10.9 Bolt; M10 x 1.5 Thread, Class 10.9 Nut
• Recommended Tools: Tool Kit 1

Sections bolt to each other and to every Cine Truss adapter in the range. M10 x 1.5 Class 10.9 bolts and nuts are the recommended hardware.
