48.3mm Scaffold to Cine Truss

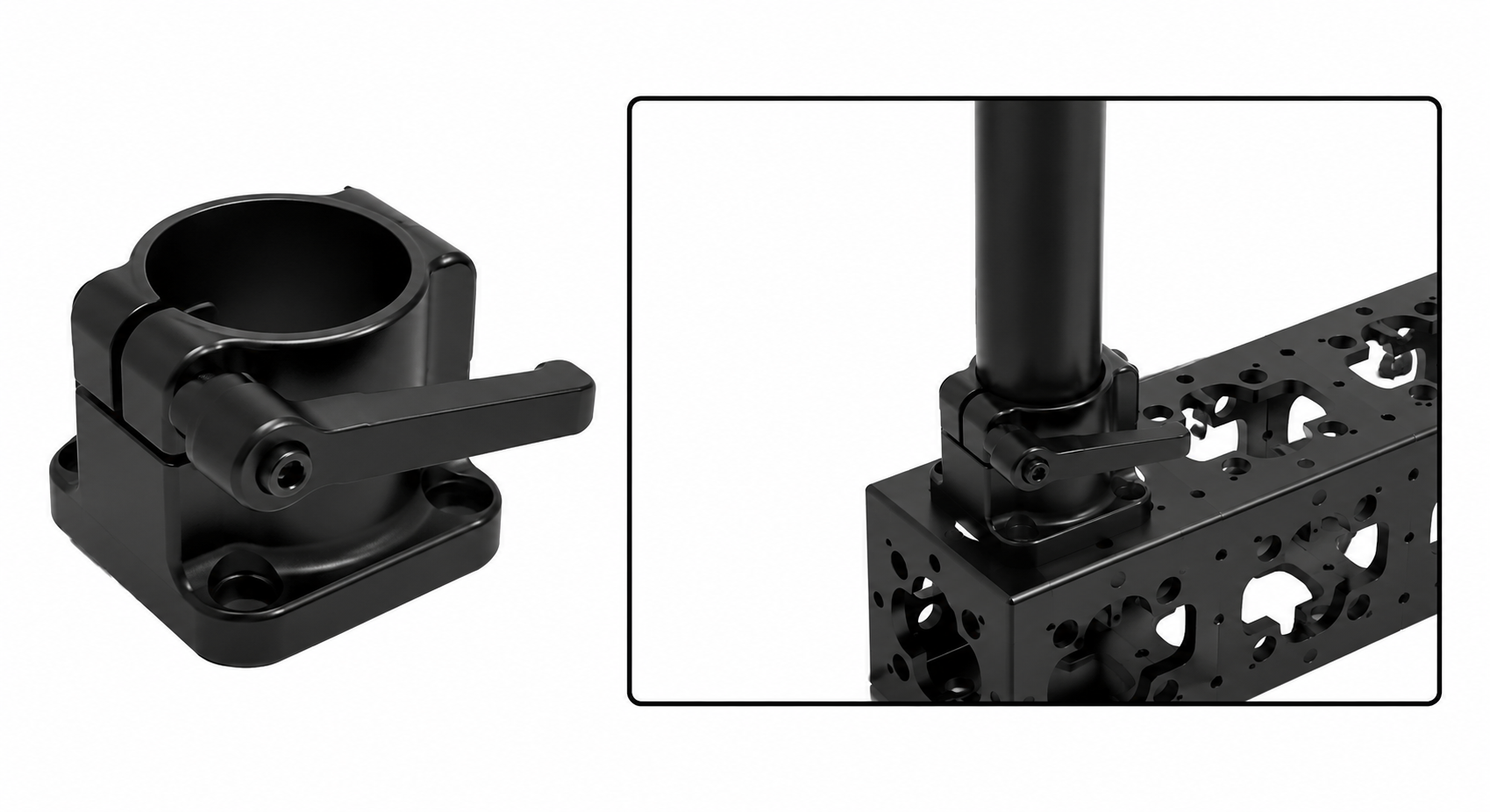

Clamps Cine Truss to 48.3mm scaffold tube - the standard pipe on most stages and speed rail builds. This is how the truss ties into existing pipe grid and scaffold structure.

Cine Truss is a precision-machined mini truss system built for camera departments. Every section is 4" x 4" 6061-T6 aluminum, black anodized, and bolts together with M10 hardware instead of the heavy steel connector blocks a normal truss needs. Tight tolerances mean the joints come together with no play, the same way every time, so a rig you built yesterday goes back together today exactly as it was.

Because it breaks down to straight sections it packs into standard protective cases, which is what makes it workable for travel and run-and-gun jobs where a conventional truss simply is not going to fly.

Specifications

• System: Cine Truss M|4x4| (4" x 4" profile)
• Standard Materials: 6061-T6 Aluminum
• Standard Finish: Black Anodized
• Recommended Hardware: M10 x 1.5 Thread, Class 10.9 Bolt and Nut
• Part Number: CTR-008

Compatible with every Cine Truss section and adapter in the range.
